Mini DC-DC 12-24V to 5V 3A Step Down Power Supply Module with Output Protection

This compact power supply module serves as a practical voltage converter, stepping down a 12-24V DC input to a regulated 5V DC output capable of delivering up to 3 amps of current. It is designed for integration into various low-voltage applications where a stable 5V supply is required from a higher voltage source, such as in vehicle electronics, portable device charging stations, or custom electronic projects. The module's defined performance metrics, including its regulation rates and thermal characteristics, provide clear expectations for its operation in different environments. Its inclusion of output short-circuit protection adds a layer of safety for the devices it powers, while the absence of input reverse polarity protection necessitates careful installation to prevent damage.

Features and Construction

The module's functionality is defined by several key electrical specifications that dictate its performance and limits. These parameters ensure users can match it appropriately to their application's requirements, from current draw to thermal management.

Material and Build

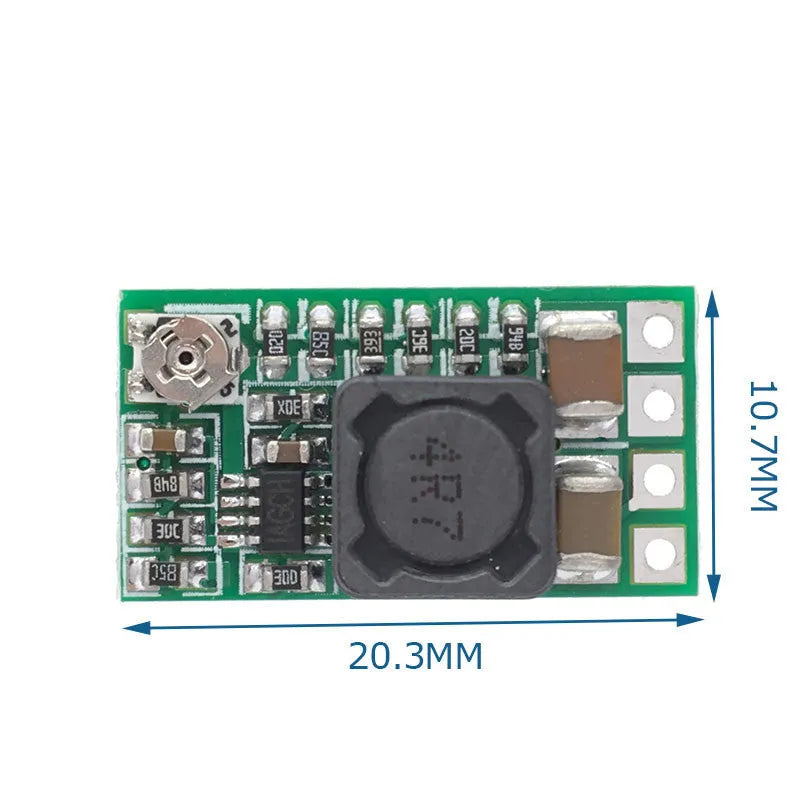

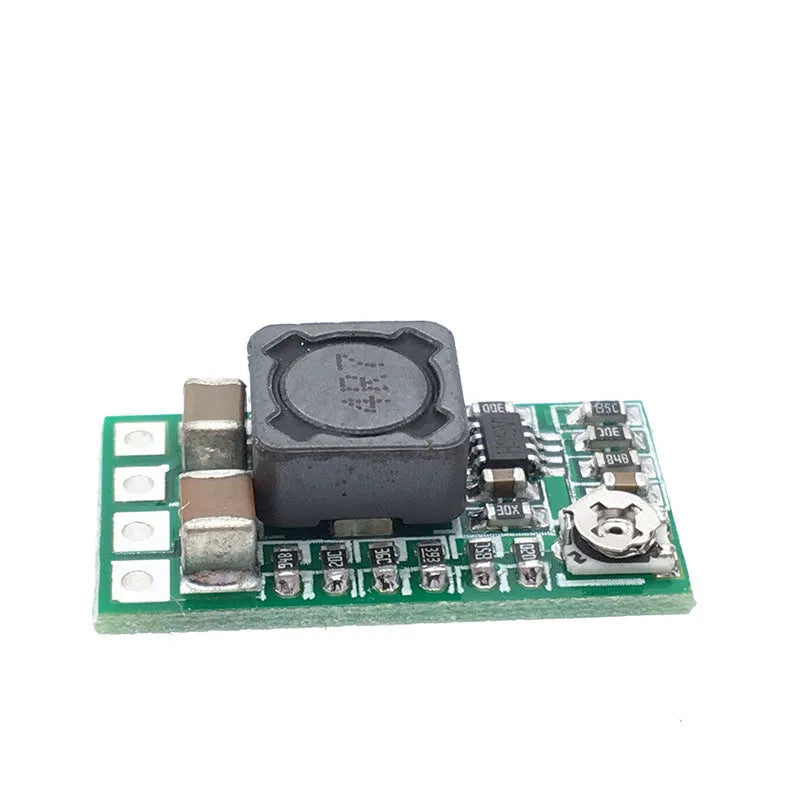

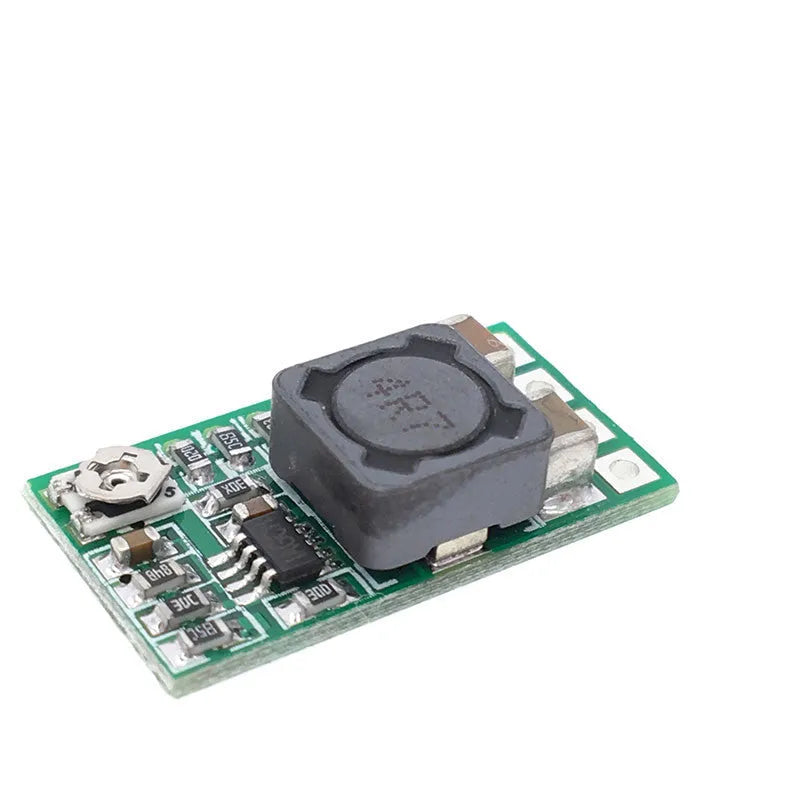

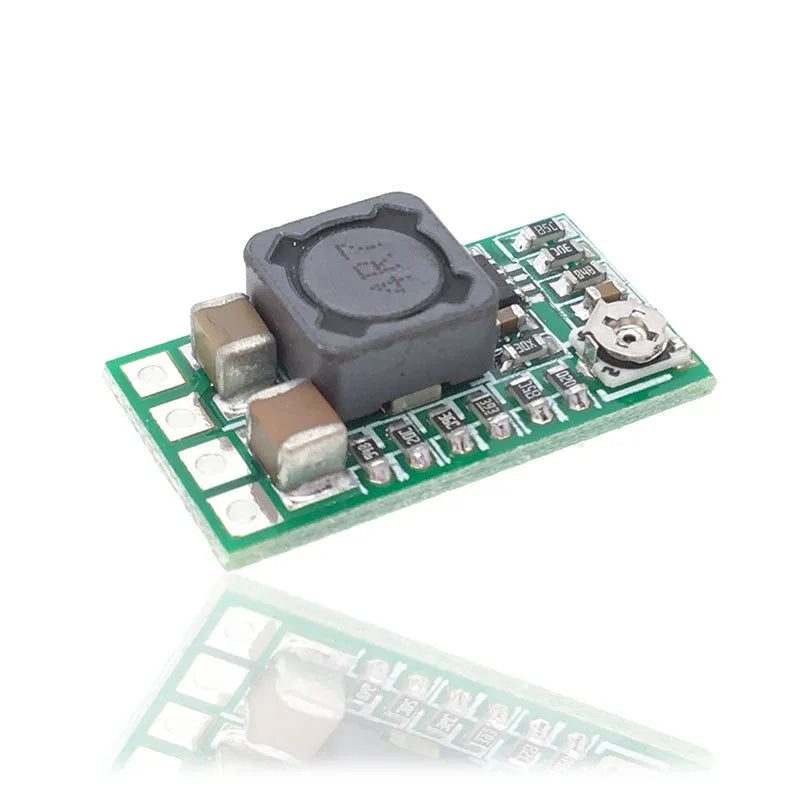

The module is constructed on a standard green printed circuit board (PCB), which houses the necessary electronic components for the step-down conversion circuitry. This material choice is common for such modules, providing a durable and non-conductive base. The build incorporates the circuitry for output short-circuit protection, which acts to limit current in the event of a fault, though sustained short-circuits should be avoided. No additional protective housing or input reverse polarity diode is included, as stated, so the module is best used in enclosed or protected environments where wiring connections are secure.

Size and Practical Fit

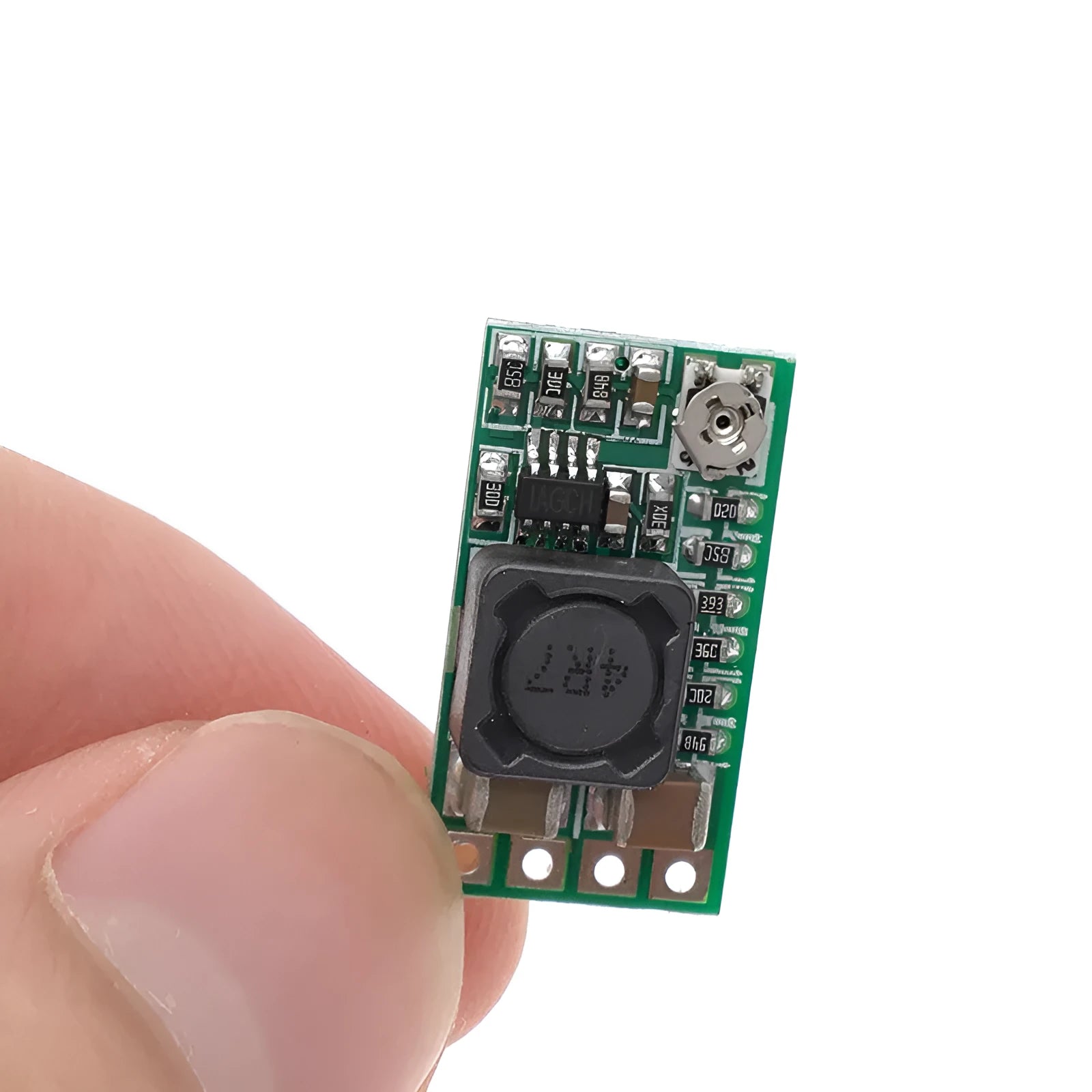

Described as 'mini', the module's compact form factor is intended for space-constrained installations. While exact dimensions are not specified, its size is appropriate for embedding within project enclosures, behind dashboards, or alongside other control electronics. The lack of a bulky heatsink, inferred from the 40°C full load temperature rise specification, suggests a design that relies on the PCB and ambient air for cooling under its maximum 3A load. This makes it suitable for well-ventilated areas but may require consideration in confined spaces with limited airflow.

Uses and Placement

The module's input voltage range of 12-24V DC makes it versatile for different power sources, from car batteries and motorhome systems to industrial control panels. Its output provides the standard 5V used by countless USB devices, microcontrollers, sensors, and small fans.

Event or Professional Use

For professional, automotive, or event applications, this module can power 5V equipment like LED lighting strips, data loggers, or communication devices from a vehicle's 12V system or a 24V industrial battery bank. The specified ±1% load regulation helps ensure voltage remains stable for sensitive electronics even as other devices on the same circuit turn on and off. The 200μS dynamic response speed allows it to handle brief current surges from motors or solenoids without significant output voltage sag, which is crucial for maintaining system stability.

Everyday Home Use

At home or in hobbyist projects, this module is ideal for creating custom USB power ports in a workshop, building a portable battery-powered device charger, or providing a clean 5V rail for Arduino and Raspberry Pi projects from a higher-voltage wall adapter or battery pack. The low 0.85 mA quiescent current means it draws minimal power when the connected device is switched off or in sleep mode, which is beneficial for battery-powered setups where every milliamp-hour counts. Its simple, solderable PCB format is designed for makers and DIY enthusiasts to integrate easily into their creations.

Benefits and Buying Value

The value of this module lies in its defined performance, safety feature, and specific application suitability, rather than unspecified general claims. It provides a dedicated solution for a common voltage conversion need.

Reuse and Low Maintenance

As a solid-state electronic module with no moving parts, it requires no routine maintenance. Its construction suggests it can be reused across multiple projects if desoldered and handled carefully. The provided specifications allow for predictable long-term performance when operated within its stated limits, particularly regarding input voltage and output current. Ensuring adequate ventilation to manage the 40°C temperature rise under full load will support sustained operation.

Why Choose This Product

This module is a suitable choice when you need a converter with clearly stated technical parameters like load regulation, voltage regulation, and quiescent current, allowing for informed system design. The inclusion of output short-circuit protection offers practical safety for your connected 5V devices. It is a functional component best selected for its electrical specifications matching your project's needs, such as requiring a 3A-capable 5V supply from a 12V or 24V source, rather than for aesthetic or unverified premium claims.
