M.2 SSD Adapter Card with Dual Slots for SATA NGFF Drives – PCIe X4 Black
This M.2 SSD adapter card lets you upgrade an older desktop PC with two high-speed SATA NGFF solid-state drives using a single PCIe slot. It is built to the M.2 specification revision 1.0 and uses the PCIe X4 (rev2.0) bus, supporting Serial ATA rev3.2 and achieving transfer rates up to 6Gb/s per drive. The card is black and requires no driver software—installation is simply a matter of inserting the card into an available PCIe slot and attaching your M.2 SSDs. It solves the common problem of limited native M.2 ports on motherboards, giving you a cost-effective expansion path without replacing the entire system.
Features and Construction
The card is designed to accommodate two M.2 NGFF SATA SSDs side by side, with support for the most common physical sizes. It uses a standard PCIe X4 form factor and bracket, making it compatible with most desktop chassis.
Material and Build

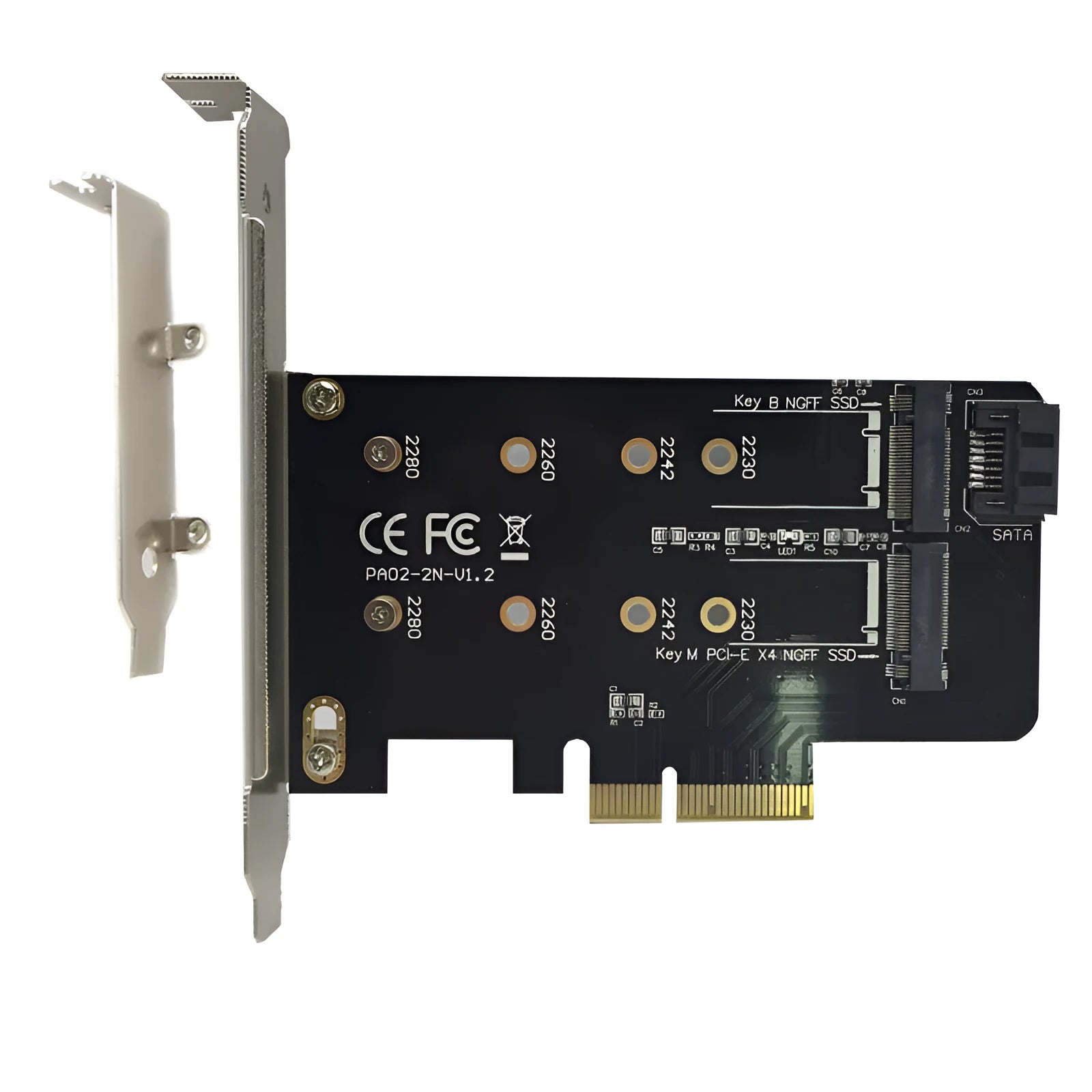

The adapter card is built on a black PCB with a standard metal bracket. It uses a PCIe X4 rev2.0 interface and complies with the M.2 specification revision 1.0, ensuring reliable electrical connectivity with the host motherboard. The card does not affect the performance of the computer motherboard's HOST terminal speed, so you get the full bandwidth of your SATA drives.
Size and Practical Fit

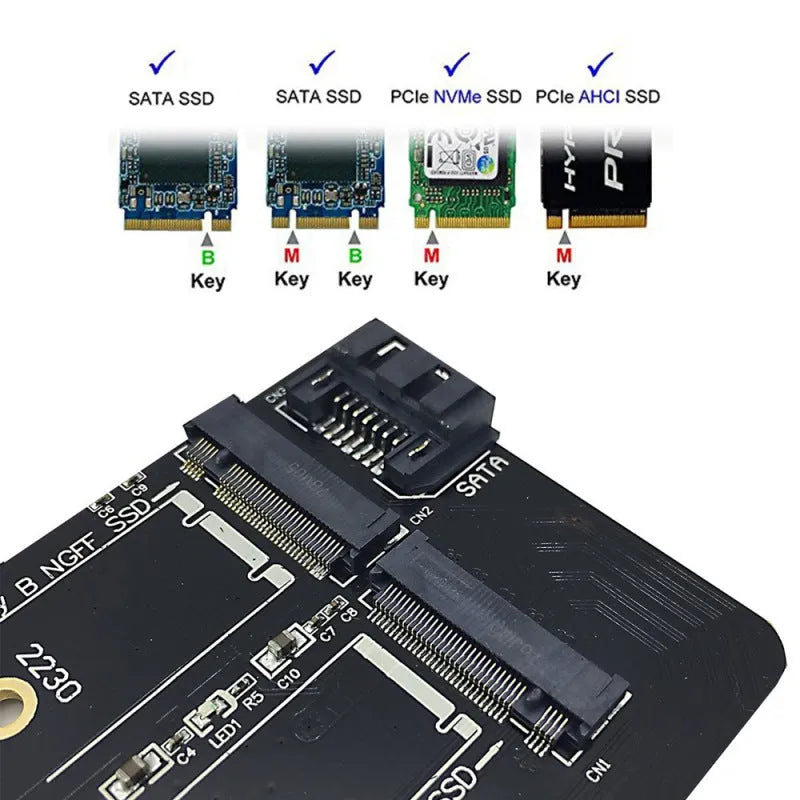

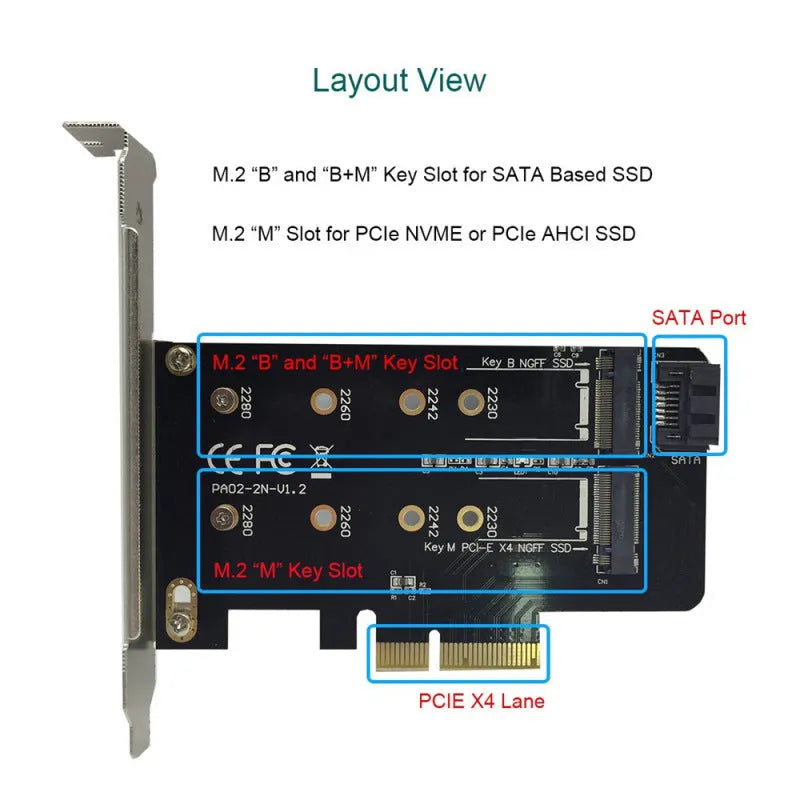

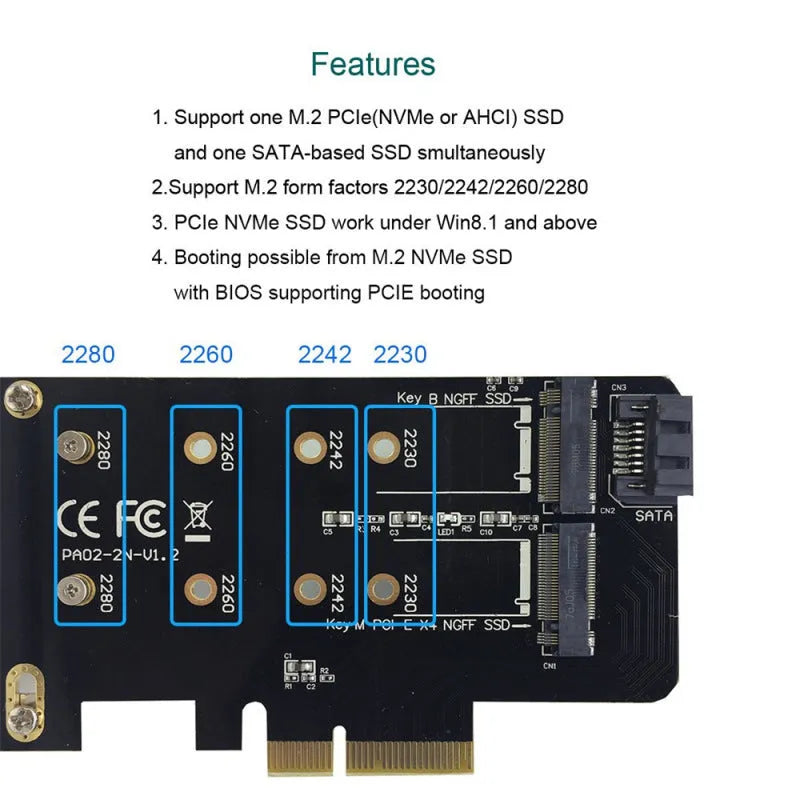

The card supports M.2 NGFF SSD sizes 2230, 2242, 2260, and 2280, covering most common drive lengths. It offers two physical slots: one M.2 Key B connector and one M.2 Key M connector, plus an additional SATA Gen 3.0 port. Exact overall card dimensions are not specified in the source, but it occupies a single PCIe slot in a standard tower case.
Uses and Placement
This adapter is primarily intended for desktop computers that lack sufficient native M.2 ports. It is particularly useful for systems where you have spare SATA NGFF drives from laptop upgrades or replacements.
Event or Professional Use
In a professional IT or workstation environment, this card allows you to quickly add extra SATA-based solid-state storage to a test bench, server, or backup machine without buying a new motherboard. The driverless setup keeps deployment fast.
Everyday Home Use
For home users, it is a straightforward way to repurpose a spare M.2 SSD as a secondary drive for games, media files, or a system restore partition. Since it supports both Key B and Key M drives, it offers flexibility regardless of the specific SSD keying.
Benefits and Buying Value
The main value of this card is its ability to expand storage capacity using a minimal number of PCIe lanes and no additional cables or driver downloads. It is a simple plug-and-play solution.
Reuse and Low Maintenance
Because no driver software is required, there is nothing to update or configure after the initial installation. The card merely passes through the SATA signals, so maintenance is limited to ensuring the PCIe slot is clean and the SSD is properly seated.
Why Choose This Product
If you have a older motherboard with limited M.2 ports but need to connect two SATA NGFF drives, this adapter provides a single-slot, driverless solution. Its support for four common sizes and both Key B and Key M interfaces increases compatibility with existing drives.
