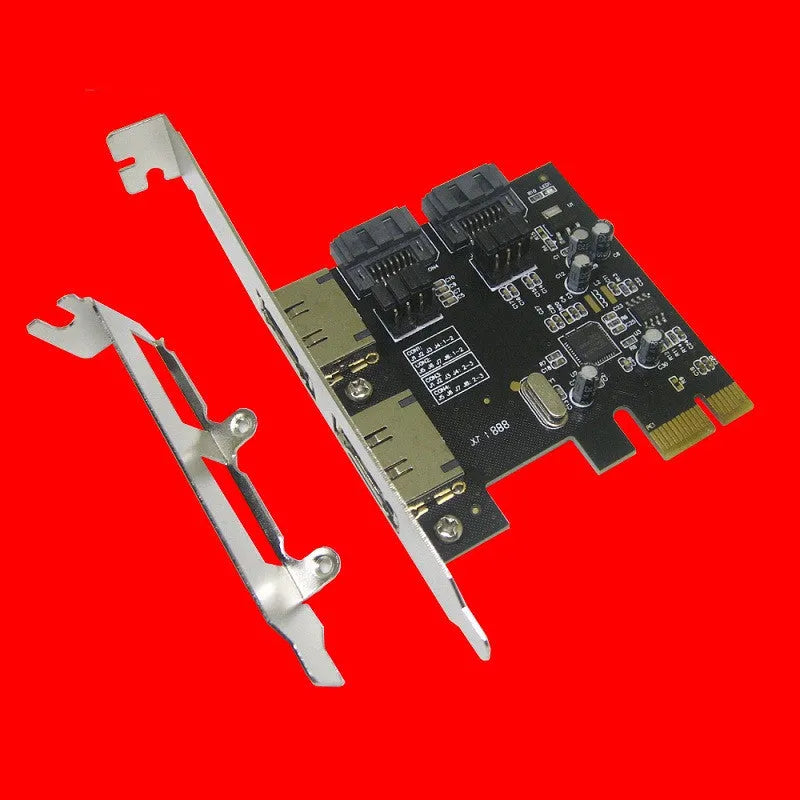

Desktop PCI-E to SATA3.0 Expansion Card with ASM1061 Chip for SSD and Drive Booting

This PCI-E expansion card is designed to increase the storage connectivity of a desktop computer by adding high-speed SATA3.0 ports. It directly addresses the common limitation of insufficient SATA ports on many motherboards, allowing users to connect additional internal hard drives, solid-state drives (SSDs), or optical drives. Utilising the ASM1061 controller chip, the card provides a stable and performant interface. A key advantage is its support for booting the operating system from any connected SATA drive, making it a practical upgrade for adding a primary SSD. Furthermore, it is designed for broad compatibility, requiring no additional drivers for Windows 7 or Apple macOS systems, and is available in several distinct model variations.

Features and Construction

This expansion card's functionality is built around its core specifications and flexible interface options, providing a clear upgrade path for desktop storage.

Material and Build

The card is built on a standard printed circuit board (PCB) that houses the ASM1061 chipset and the necessary circuitry to convert the PCI-E bus signal to SATA. The ASM1061 is a dedicated SATA controller known for its reliability in providing native SATA3.0 (6Gbps) performance. The construction focuses on delivering the stated port functionality without extraneous features, making it a focused solution for expanding SATA connectivity. The quality of the build is oriented towards fulfilling its specified role of adding stable SATA and eSATA ports to a compatible system.

Size and Practical Fit

The product is noted to come in different sizes corresponding to different models. This indicates there may be variations in the card's physical form factor (e.g., half-height or full-height brackets) to fit different desktop PC cases. The specific size for a given unit would be determined by its style configuration (A, B, C, D, or E). This variety ensures users can select a model that physically fits their computer chassis, which is a crucial practical consideration for any internal expansion card installation.

Uses and Placement

The card serves a distinct purpose in both professional and home computing environments, where expandable and fast storage is a constant need.

Event or Professional Use

In a professional or workstation context, this card enables the addition of high-speed SSDs for applications like video editing, large database work, or as a scratch disk, leveraging the SATA3.0 interface's full bandwidth. The eSATA ports allow for the connection of fast external drive enclosures for backup or data transfer tasks. Its support for boot drives means it can be used to host the primary system drive, which is beneficial for custom-built workstations or servers where specific drive configurations are required. The plug-and-play driver support for major operating systems reduces setup complexity in managed IT environments.

Everyday Home Use

For home users, this expansion card is a cost-effective way to breathe new life into an older desktop by adding a modern SATA3.0 SSD as the main boot drive, significantly improving overall system responsiveness. It also conveniently solves the problem of running out of SATA ports for adding extra hard drives for media storage, game libraries, or creating a home server. The compatibility with optical drives allows for retaining or adding a DVD or Blu-ray drive even if the motherboard lacks sufficient ports. The simple installation and lack of driver hassle make it an accessible upgrade for users with moderate technical skill.

Benefits and Buying Value

The value of this product lies in its specific functionality, compatibility, and the practical storage expansion it enables without unnecessary complexity.

Reuse and Low Maintenance

The card offers a straightforward way to reuse an available PCI-E slot to extend the useful life of a desktop PC by accommodating modern storage devices. Its maintenance is minimal; once installed and configured with the jumpers for the desired SATA/eSATA mode, it operates without need for ongoing management. The driver-free operation on supported systems eliminates a common point of failure and simplifies long-term use. This contributes to a reliable, set-and-forget expansion solution that adds lasting value to the host computer.

Why Choose This Product

This expansion card is a focused choice for users who need to add more SATA3.0 or eSATA ports with guaranteed boot support. Its use of the established ASM1061 chipset provides a known level of performance and compatibility. The option between multiple style configurations (A-E) suggests a range of physical designs to suit different PC cases. When compared to more complex RAID cards or multi-port controllers, this card stands out for its simplicity, specific feature set, and lack of required software overhead, making it an efficient and targeted solution for basic storage expansion needs.
