5 10 Inch Contour Gauge Template Plastic Measuring Tool for Edge Shaping and Tile Duplicating

5 and 10 inch orange plastic contour gauge with ABS and aluminium construction, 0.01mm accuracy

If you regularly work with irregular surfaces such as pipes, tiles, or car body panels, achieving a precise fit can be a slow, frustrating process. This contour gauge solves that by providing an instant, reusable template for marking exact cuts. With a durable ABS plastic body and aluminium alloy core, it conforms closely to any shape and holds the outline securely. Available in 5 inch and 10 inch sizes, this tool helps you measure, mark, and cut with greater accuracy, reducing waste and saving time on woodworking, flooring, and automotive jobs.

Features and Construction

5 and 10 inch orange plastic contour gauge with ABS and aluminium construction, 0.01mm accuracy

Built for reliable, repeated use, this contour gauge combines lightweight materials with practical design elements that make copying shapes straightforward.

Material and Build

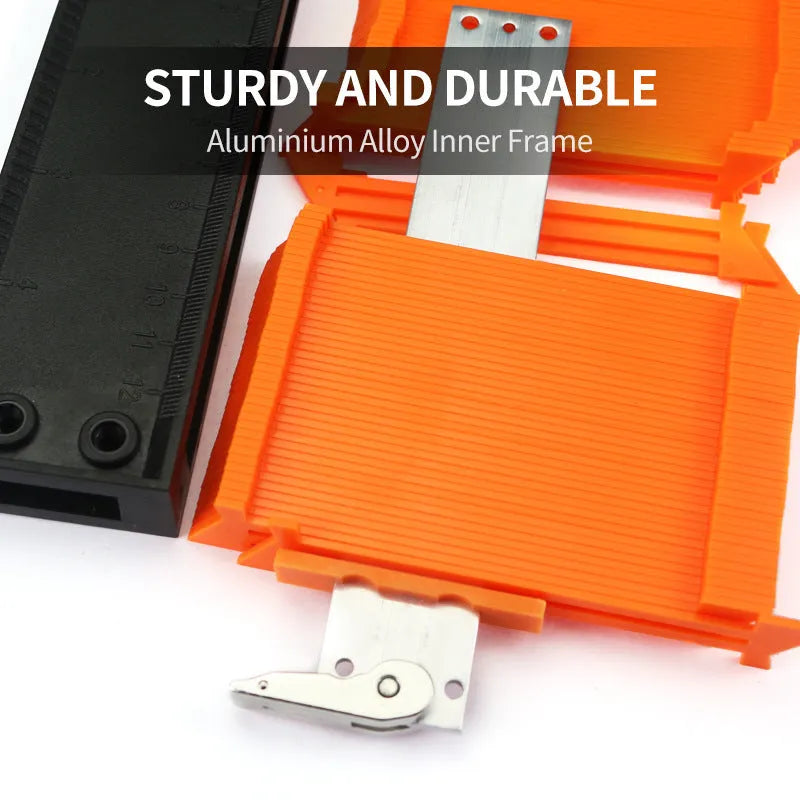

The tool uses an aluminium alloy core for strength, wrapped in a durable ABS plastic shell that resists rust. This combination keeps the gauge lightweight yet tough enough for daily workshop use. The non-rusting plastic ensures the contour pattern remains stable even after repeated pressing, so you get consistent results each time.

Size and Practical Fit

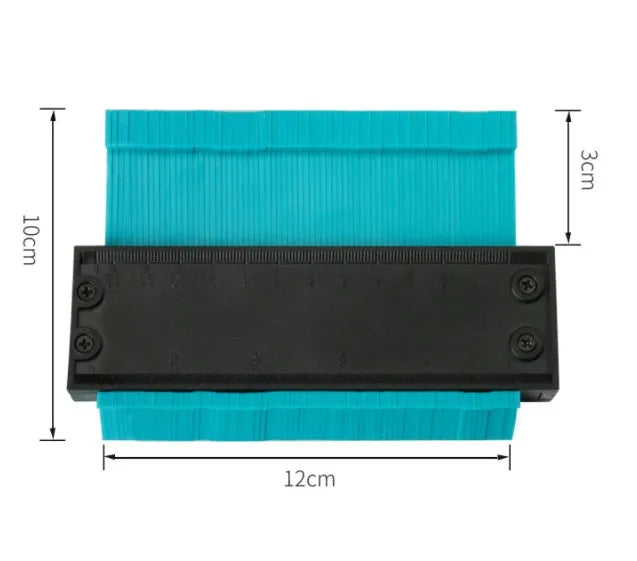

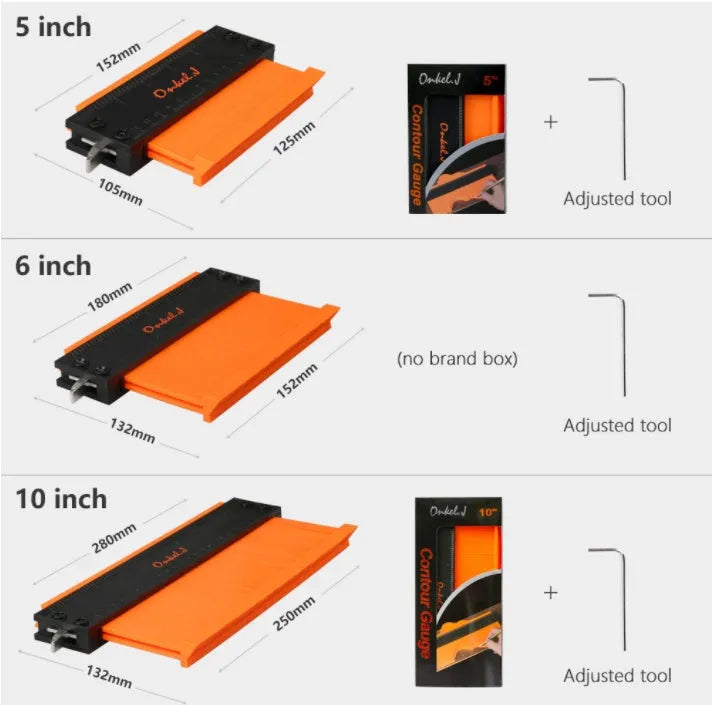

Two sizes are available: a 5 inch (125 mm) gauge measuring 12 x 10 x 3 cm, and a 10 inch (250 mm) gauge at 25 x 10 x 3 cm. The measuring range is 0–250 mm, with an accuracy of 0.01 mm. This allows you to copy contours on both small and larger surfaces, from tile edges to car metal plates.

Uses and Placement

5 and 10 inch orange plastic contour gauge with ABS and aluminium construction, 0.01mm accuracy

This contour gauge is versatile enough for multiple trades and DIY projects, making it a practical addition to any toolkit.

Event or Professional Use

For carpenters, tilers, and metalworkers, the gauge offers a quick way to duplicate irregular shapes for cutting laminate, wooden boards, stainless steel, or car body panels. It helps bypass pipes, circular frames, and ducts, so you can fit new materials around existing obstacles without repeated trial and error.

Everyday Home Use

Home DIY enthusiasts will find it useful for projects like fitting carpets around pillars, cutting floor tiles to fit awkward corners, or shaping moulding for architraves. The tool simplifies tasks that usually require multiple measurements, giving you confidence on your next home improvement job.

Benefits and Buying Value

5 and 10 inch orange plastic contour gauge with ABS and aluminium construction, 0.01mm accuracy

This contour gauge delivers practical advantages through its simple design and robust materials, offering good value for both professionals and hobbyists.

Reuse and Low Maintenance

Because the plastic does not rust, the gauge maintains its shape after each use. No special care is required – just wipe it clean. This means you can rely on it for many projects without frequent replacement, making it a cost-effective measuring tool.

Why Choose This Product

The high-precision calibration (0.01 mm accuracy) ensures your measurements are reliable, reducing material waste. The bright orange colour makes it easy to spot on a cluttered workbench. With both 5 inch and 10 inch options, you have flexibility for small and larger contour copying tasks alike.
